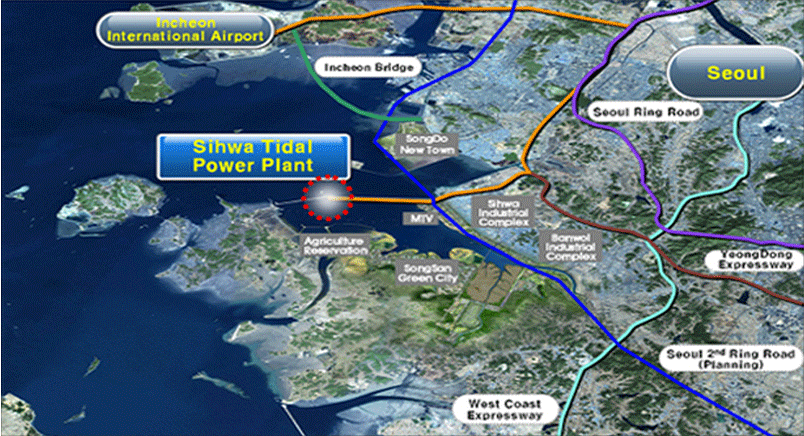

Location

Background

• ' 94.01 : Comletion of Sihwa Tide Embankment
• ' 00.12 : Lake use plan was changed (Freshwater lake→Seawater lake)
• ' 02.12 : Sihwa Tidal Power Plant Project decided
• ' 04.12 : Commencement

Overview

• Location : Sihwa Tide Embankment
• Facilities : 254MW (25.4MW per turbine, 10 turbines, 8 Sluice Gates)
• Annual Generation : 552.7GWh
• Generation Type : Single-Effect Flood Generation Type
• Project Period : 2003~2010
• Project Cost : US$ 355.1 million

Objectives

• To develop clean, renewable energy supplies
• - Annual oil subtitution Effect : 862,000 barrel
• - Annual reduction of CO2 emission : 315,000 ton'
• To improve the water quality of Sihwa Lake

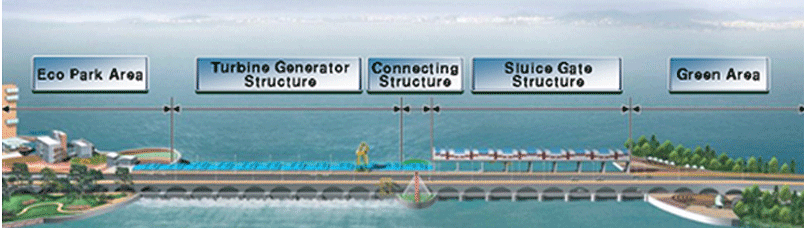

Structure Layout

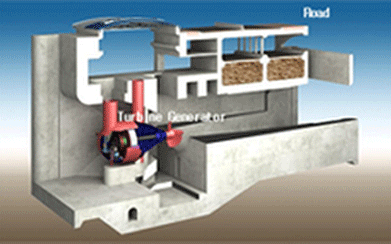

• Turbine Generator Structure

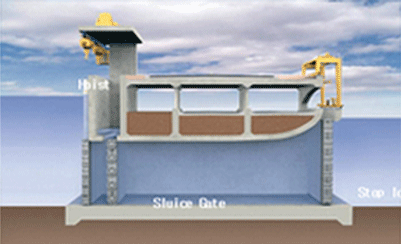

• Sluice Gate Structure

What is Tidal Power Generaton?

The seawater is stored inside a tidal embankment built at the mouth of a river or bay, where tides ebb and flow.
The turbines and generators produce power by exploiting the gap in the water level between the water outside and inside the embankment. It can generally be classified as one-way generation (single effect) or two-way generation (double effect).

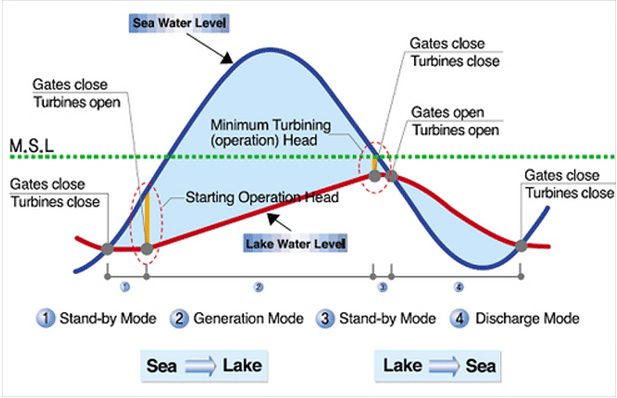

Single-Effect Flood Generation

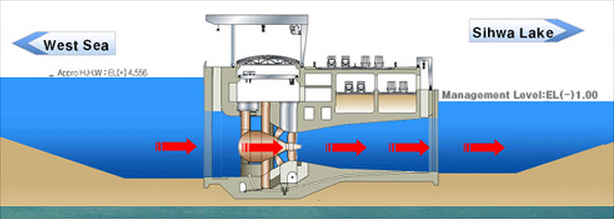

Generation System

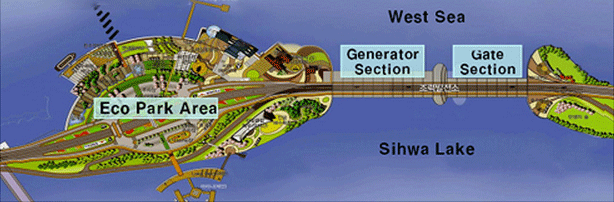

Plane Plan

Eco park area Plan

• Culture & Art Area
• Recreation Area

Eco-environmental Area

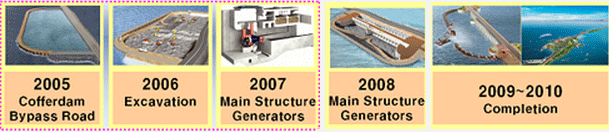

Construction Plan

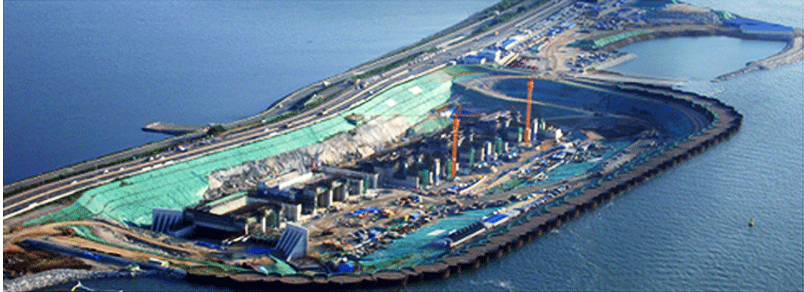

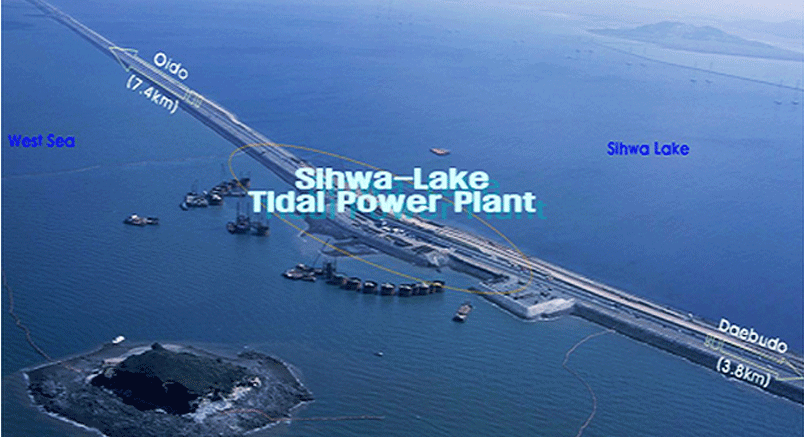

Site View

Overseas Tidal Power Plant

Plant List

Name	Sihwa(Korea)	Rance(France)	Annapolis(Canada)	Jiangxia(China)
apacity(MW)	254	240	20	3.2
Annual Generation (GWh)	552.7	544	54	6
Head(m)	9.16	13.5	8.7	8.39
Generation Typ	Single	Double	Single	Double
Completion	2010	1967	1984	1986

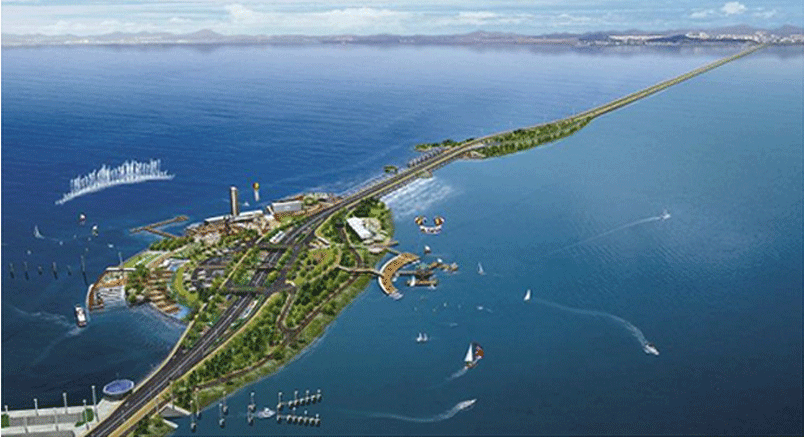

Gneral View
